Description

Technical Parameters

Parameters

● Product name: UVLED curing system

● Product type: split type and add-on type

● Product model: FT610-4F36-S400100

● Irradiation area：400mm*100mm,four light sources in total

● Cooling modes: air cooling and water cooling for choice

● Total equipment power: 6.5KW

● Wavelength peak: 365nm(others can be custom-made)

● Light source life：>20000H

● Input power: AC 380V

● Inlet height：0-170mm

● Lamp box size: L1200mm × W1140mm × H500mm

● Controller size: L450mm × W440mm × H265mm

Details

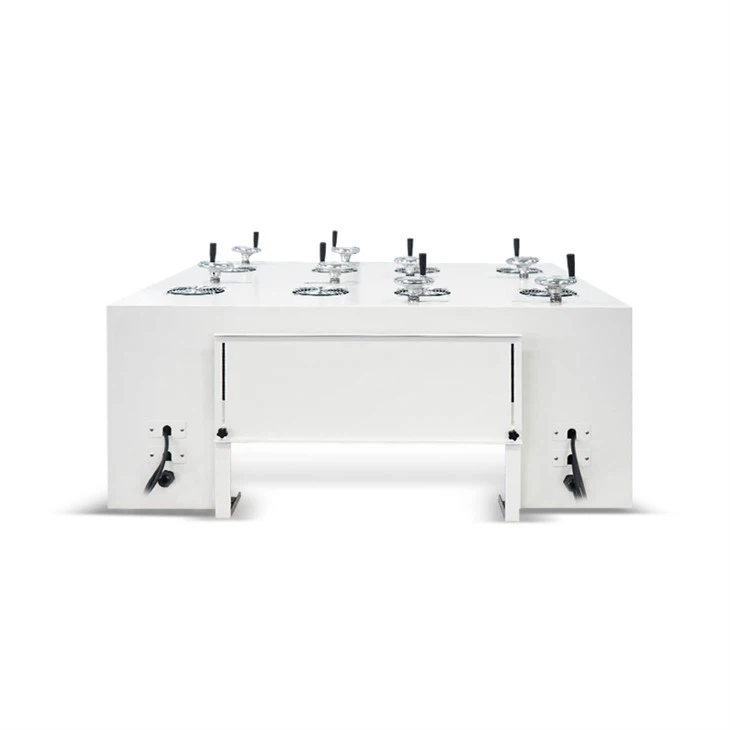

Our UVLED curing system adopts a split design and has extremely high adaptability. It can be flexibly custom-made according to the width of the production line and specific production requirements. The system is equipped with 4 sets of light sources to ensure sufficient and uniform illumination, meeting the curing work of different scales and complexities.

Our UV glue curing machine is popular both home and abroad. The cooling methods can be air cooling and water cooling. Air cooling is economical and convenient, capable of meeting normal working conditions. Water cooling has a higher heat dissipation efficiency and is suitable for temperature-sensitive operation environment, effectively ensuring the stable operation of the equipment and extending the lifespan of the light source. The wavelengths available are 365nm, 395nm, and 405nm, which adapt to various UV adhesives, inks and varnishes, etc., and the application scope is expanded. The lifespan of the light source is longer than 20,000 hours, which significantly reduces the frequency of lamp replacement and lowers maintenance costs comparing to traditional mercury lamps.

The UV glue curing machine can cure the glue used for components of mobile phones and computers in the electronics industry; it can quickly cure UV inks to enhance production efficiency in the packaging and printing field; it has a remarkable UV adhesive bonding effect on lenses and mirrors in optical manufacturing; it meets the aseptic curing requirements for components such as catheters and medical sensors in the medical device industry. With its customized advantages, long-life light sources, flexible cooling methods and customizable wavelength features, our UV glue curing machine demonstrates extremely high cost-performance and has become a reliable choice for curing technology in many industries.

Company Profile

product-1200-692

Exhibition Highlights

product-1200-1077

Certificate

product-1200-1301

product-1200-1900

FAQ

Q: Can we view the video and report of machine test before shipment?

A: Of course! We will conduct a thorough test and send you the test video and report for your review before the machine is packed. Once you confirm that everything is OK, we will then proceed with the shipment.

Q: How to select the wavelength of UV LED curing lamps?

A: Make the choice based on the absorption characteristics of the curing material, referring to the recommended wavelength provided by the material supplier. If you need to cure multiple materials, you can choose lamps with multiple wavelengths or use them in combination.

Q: What is the relation between UV LED power and curing efficiency?

A: The higher the power, the stronger the light intensity and the faster the curing. However, if it is too high, it may cause the material to turn yellow or become brittle. It is necessary to test the optimal power based on the specific scenario. You can provide samples for us to test.

Q: What factors affect the lifespan of UVLED?

A: The usage duration, environmental temperature (suitable range: 25-40℃), heat dissipation performance, switching frequency. Frequent switching or high temperature will shorten the lifespan.

Q: How to maintain the lifespan of UV LED?

A: Control the environmental temperature, clean the cooling system regularly, reduce unnecessary switches, measure the light intensity with an UV energy meter, and power it on periodically when not in use for a long time.
