Description

Technical Parameters

Parameters

● Product Name: Explosion-proof UV Curing Machine

● Model: EXLY400-2DZ3K

● Conveying width: 400mm

● Conveyor belt material: Teflon

● Overall dimensions: 2000*700*1800 (mm)

● The height of the inlet: 30 - 200mm(adjustable )

● Conveying speed: 0.5-8M/min

● Quantity of UV lamps: 2

● UV lamp power: 3KW*2pcs

● UV lamp type: High-pressure mercury lamp

● UV lamp wavelength: 250-450nm, main peak 365nm

● Overall power: 8KW

● Input voltage: 380V

● Power regulation: 20-100% infinitely adjustable

Details

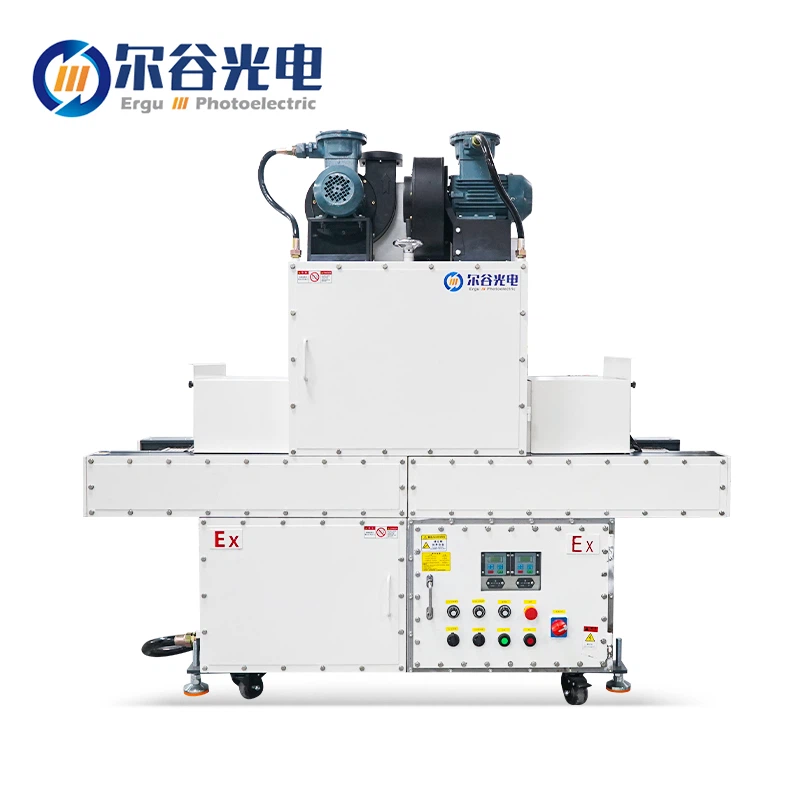

The explosion-proof curing machine is a professional UV curing conveyor developed for flammable and explosive environments. With authoritative explosion-proof certification, it can operate safely in high-risk scenarios such as chemical laboratories.It effectively solves the safety risks of traditional curing equipment in dangerous environments, and takes into account the needs of efficient curing, providing reliable guarantee for curing operations of coatings, inks and other materials.

In terms of core structure and size design, the equipment is highly practical. With dimensions of 2000*700*1800mm, it can flexibly adapt to the layout of most laboratory sites. The 400mm wide Teflon mesh belt is not only resistant to high and low temperatures and corrosion, but also can stably convey various workpieces to be cured, meeting the processing requirements of products of different sizes. The height of the inlet is adjustable from 30 -200mm, which can be flexibly adjusted according to the thickness of the workpiece, further enhancing the convenience of operation.

The explosion-proof UV curing equipment is equipped with 2pcs 3KW high-pressure mercury lamps, with lamp wavelengths covering 250-450nm and a main peak of 365nm. It can precisely match the UV curing conveyor of coatings and inks, ensuring uniform and thorough curing effects. The conveying speed can be adjusted from 0.5 - 8M/min. With a power range of 20-100% infinitely adjustable, it can be flexibly adjusted according to the curing process requirements of different materials. The overall power of the machine is only 8KW. It achieves energy-saving operation while providing high power output, reducing long-term usage costs.

We can offer tailor-made services. Based on the user's workplace space, product features, curing process standards, etc., we can make personalized adjustments to the width of the mesh belt, external dimensions, lamp group configuration, power parameters, etc. of the explosion-proof UV curing equipment. Enable the equipment to be more precisely adapted to actual production or R&D scenarios, and provide more demand-oriented solidified solutions for users in related fields.

Company Profile

product-1200-692

Exhibition Highlights

product-1200-1077

Certificate

product-1200-1301

product-1200-1900

FAQ

Q: What is the standard lead time for the products?

A: For the regular model of small UV curing machines, we can complete the lead time within 15 days. Due to the complex process of medium and large-sized ultraviolet curing equipment, please consult our sales team for the production cycle.

A: How to choose the power of ultraviolet curing equipment?

Q: It is necessary to comprehensively consider factors such as the actual application environment, the size of the area to be cured, the required curing speed, and the performance of the materials used. For small-area precision operations, lower-power equipment can be selected. Large industrial production lines require high-power equipment to ensure efficiency and continuity.In general, the larger the irradiation area, the faster the curing speed requirements, the higher the power required.

A: How is the curing time determined?

Q: The curing time depends on factors such as material properties (material type, thickness, etc.), light intensity and wavelength.Different materials have different absorption and reaction times to UV light, and the thicker the material, the longer the curing time is required. The optimal curing time is usually determined through experiments, generally ranging from a few seconds to tens of seconds. In actual production, the curing time can be gradually adjusted according to production requirements to ensure that the material is completely cured without over-curing.

A: How to determine whether the lamp of UV curing equipment should be replaced?

Q: When the lamp occurs the following circumstances should be considered to replace: can not effectively cure the material; Cannot turn on; The lamp has obviously changed color (such as turning black, yellow, etc.); The lamp expands due to overheating. In addition, if other components of the equipment are normal but the curing effect remains poor for a long time, it may also be that the lamp has aged and should be replaced.

A: How does the light intensity of UV curing equipment affect the curing effect?

Q: The higher the light intensity, the faster the curing speed is usually. However, excessively high light intensity may cause excessive curing of the material surface, resulting in problems such as yellowing, brittleness, and bubbling. Insufficient light intensity will result in incomplete curing. The appropriate light intensity should be determined through experiments based on the material properties and practical applications, and is generally measured in units of mW/cm².
